HMX ANTI LINEAR SWITCH FACTORY LUBED (10PCS)

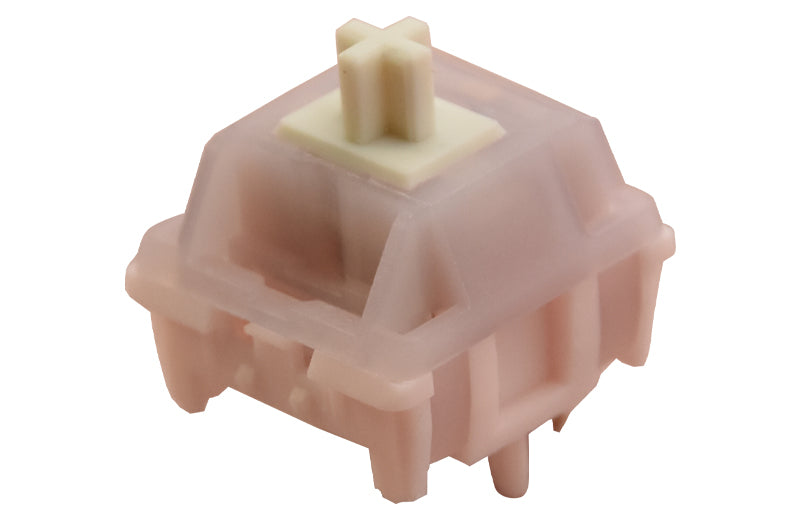

HMX Anti Linear Switch

The stem mold Anti switches use is newly designed and custom-made for Anti switches only. Unlike the traditional HMX linear switches we are familiar with, Anti switches are different in these aspects:

1. The customized stem mold and housing mold give them a scratchy feeling similar to the Sonja switches
2. Slightly more stem wobble than any existing HMX switches to eliminate potential syringe effect or tight feeling during travel
3. The new stem comes with a smaller-than-usual stem tip, which creates a clacky but not too loud bottom-out sound
4. With a precise factory lubing method, they sound very clean with a tiny bit of factory lube on the right spots

The design is pretty aggressive, as it seems HMX is sacrificing the tight stem tolerance for an ultimate smooth typing experience. HMX stepped outside its comfort zone this time and experimented with something that's usually not associated with HMX switches.

Specs:

1 quantity = 10 switches

Switch Type: Linear

Mold: Customized new stem mold/New bottom housing mold

Manufacturer: HMX

Stem material: POM

Top Housing: PA12

Bottom Housing: PA-2

Operating Force: 40±2g

Bottom-out Force: 50±2g

Pre-travel: 2.0mm

Total Travel: 3.7±0.2mm

Spring: 18mm KOS single-stage extended

Factory Lubed: Yes! Stem legs and stem sliders are covered with a very thin coat of 205g0. The spring and leaf are lubed with dry film.
