Seed Plan Linedge 65 Keyboard Kit

The Seed Plan Linedge 65 is a 65% keyboard kit offered in five regular colorways plus the Black + Copper Special Edition. Select your colorway from the options above.

Specifications

• Typing angle: 7.5°
• Mounting system: Silicone grommet PCB gasket mount, supporting multiple grommet hardness options
• Front height: 15.50 mm at the lower case; 18.50 mm at the upper case
• PCB formats: Hotswap or solder
• Listed weight: 3 kg for each regular colorway; 5 kg for the Black + Copper Special Edition

Colorways

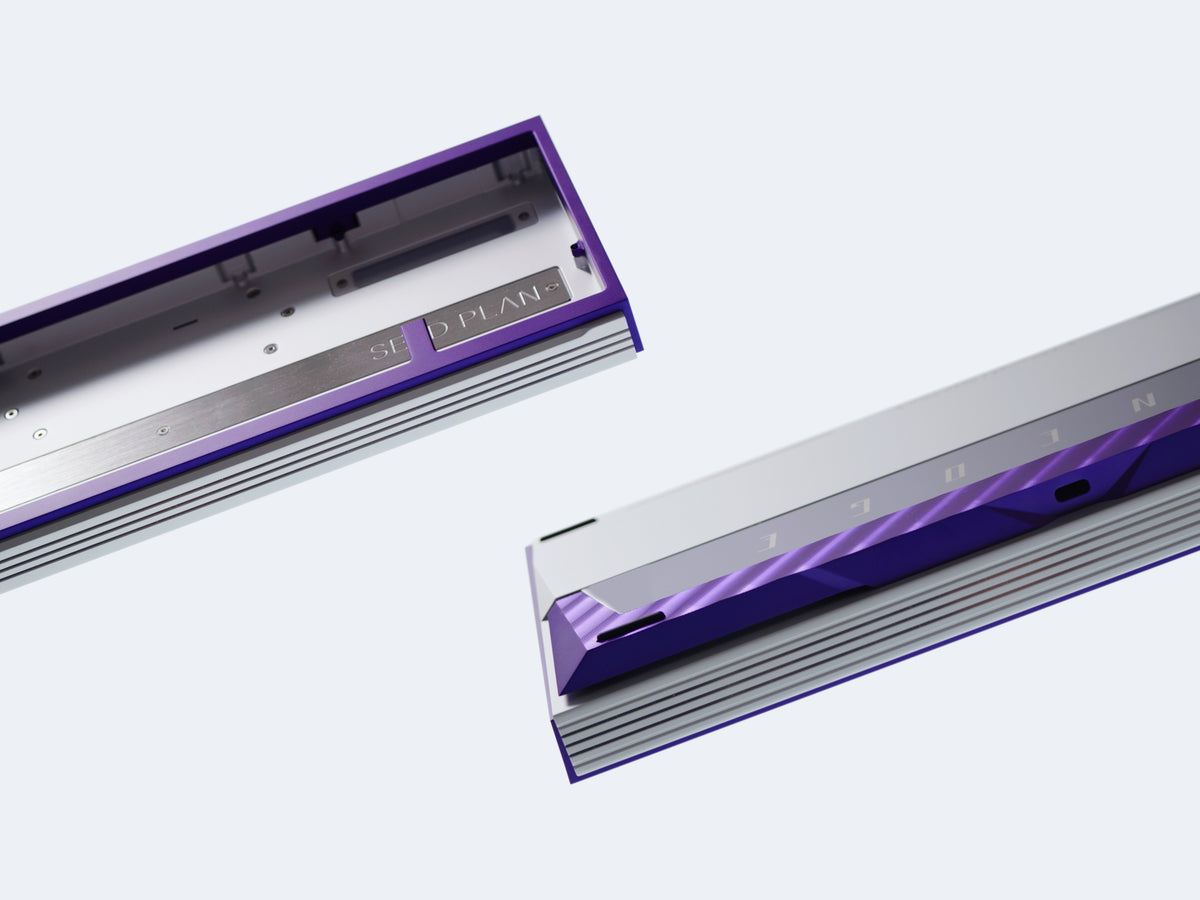

• Silver Purple
• Silver Silver
• Gold Green
• Silver Blue
• Champagne Brown
• Black + Copper Special Edition

Each Kit Includes

• Aluminum plate without flex cuts, color-matched to the upper case
• 1.6 mm high-Tg PCB without flex cuts (hotswap or solder format)
• Front and rear grilles with polished, secondary-anodized accents, color-matched to the lower case
• PVD-coated stainless steel bottom weight
• Brushed stainless steel internal weight
• One set each of 40A, 50A, and 70A silicone grommets
• Bottom PET sheet

Plate files can be made publicly available for third-party fabrication if you prefer another plate material.

Optional Upgrade

Anodized bottom detailing with diagonal machining lines. This upgrade is not included in the standard kit.

Additional Extras

• Extra aluminum plate
• Extra PCB: hotswap or solder

Additional extras are separate from the standard kit. Photos show the corresponding case colorways.
