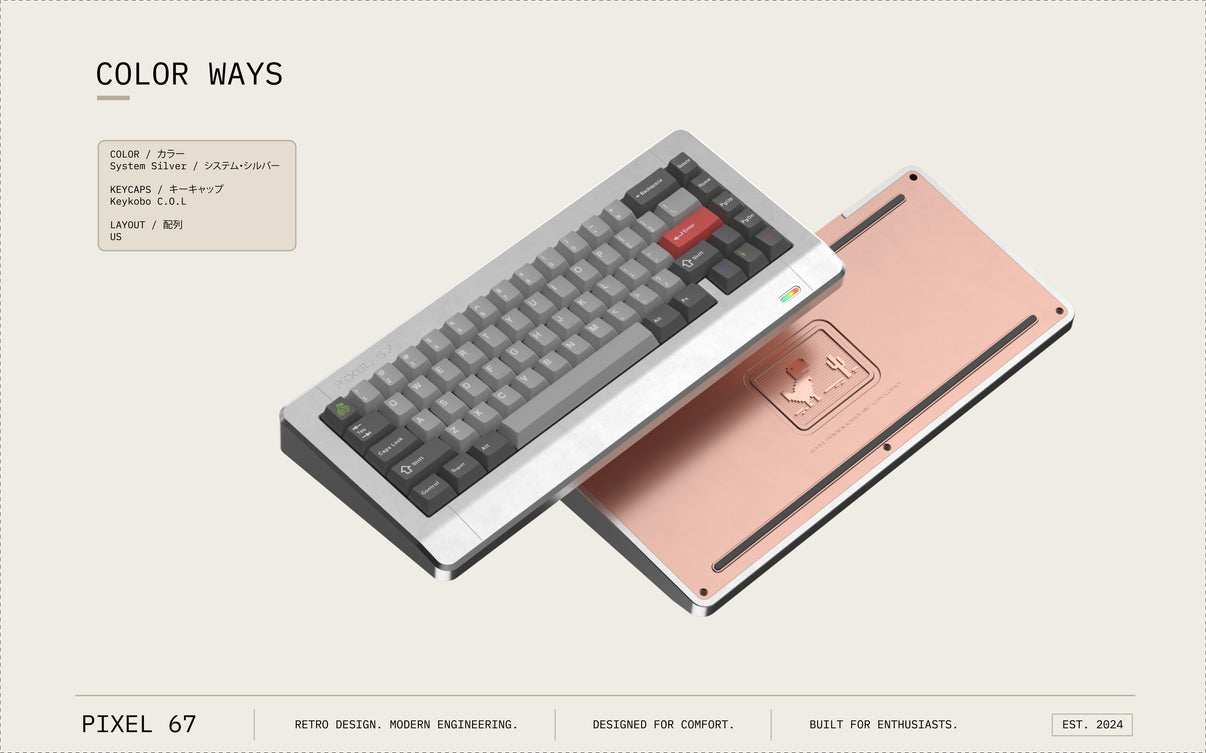

Pixel67 Keyboard Kit
Pixel67 is a retro-inspired 67% custom keyboard designed by a Japanese keyboard enthusiast currently based in Silicon Valley. Inspired by classic IBM and Apple keyboards, Pixel67 combines nostalgic industrial design with modern custom keyboard features, delivering a premium typing experience that feels familiar, refined, and practical for everyday use.
Developed in collaboration with Keykobo over an 8-month design cycle, Pixel67 features a unique Pogo Pin Gasket Mount system, an internal brass weight, tri-mode connectivity, and carefully tuned acoustics, creating a keyboard that is comfortable, reliable, and approachable for both newcomers and enthusiasts.
Discount Code Restrictions:
Affiliate codes are eligible for this purchase
Free shipping is NOT eligible for this product
loyalty codes are NOT eligible for this purchase
|
Important to note: This is a short pre-order, not an in-stock item. All units will be shipped out after the production is finished. The following timeline is our best estimation but is subject to change if affected by unexpected events. By placing an order, you acknowledge that this product is a pre-order / not in stock and have read the estimated timeline below.
Timeline:
GB Date: June 17 - July 17, 2026
Estimated Shipping Date: October 15, 2026
GB/Pre-Order Cancellation/Refund/Return Policy:
Please note that all Group Buy (GB) and pre-order purchases are final.
• Cancellations or refunds are not accepted
• Returns are not accepted for any GB or pre-order items
We recommend making your purchase decision carefully before the GB/pre-order closes.
|
Key Features
- Designed by Pixtendo Lab
- Retro-Inspired 67% Layout
- Pogo Pin Gasket Mount Structure
- Internal Brass Weight
- Tri-Mode Wireless PCB
- VIA & QMK Compatible
- CNC Aluminum Case
- Pre-built and Barebone Configurations Available
- Optimized for Comfort and Everyday Use
Specifications
| Item |
Specification |
| Layout |
67% |
| Mounting Style |
Pogo Pin Gasket Mount |
| Case Material |
CNC Aluminum |
| Weight Material |
Brass |
| Connectivity |
Wired / Bluetooth / 2.4GHz Wireless |
| PCB |
Tri-Mode Hotswap PCB |
| Software Support |
VIA & QMK |
| Typing Angle |
6° |
| Front Height |
Low Front Lip Design |
| Plate Support |
Multiple Plate Options |
| Stabilizers |
PCB-Mounted Stabilizers |
| Battery |
Included with Tri-Mode PCB |
Pogo Pin Gasket Mount
The Pogo Pin Gasket Mount was developed to provide a more consistent and predictable typing experience than traditional gasket or leaf spring mounting systems.
Unlike conventional leaf spring designs that may vary in stiffness across different regions of the keyboard, each pogo pin compresses with nearly identical force. This creates a more uniform typing feel throughout the board while maintaining controlled flexibility and comfortable keypresses.
The pogo pin system also offers excellent long-term durability, as it does not suffer from the material fatigue commonly associated with foam or gasket-based support structures. The result is a typing experience that remains consistent even after years of use.
Internal Brass Weight
Pixel67 utilizes a substantial internal brass weight that serves both structural and acoustic purposes.
The additional mass gives the keyboard a more premium and stable feel on the desk while significantly reducing unwanted resonance inside the case. By filling internal space and increasing overall density, the brass weight helps eliminate hollow sounds and case ping, resulting in a cleaner, deeper, and more controlled acoustic profile—even in foamless builds.
Keyboard Content
Pre-Built Kit Includes
- Pixel 67 keyboard kit (Everything included in the barebone kit)
- Switches of your choice
- Keykobo ABS Double-Shot Keycaps
- Tuned Stabilizers
-
Extra Keycaps (7U Spacebar, ISO keys, Split backspace keys, Mac keys)
- Foam kit
- Keyboard Case
- User Manual
Barebone Kit Includes
- Aluminum top case
- Aluminum bottom case
- Tri-mode hot-swap PCB
- Alu Plate
- Internal brass weight
- Pogo Pin gasket components
- Foam kit
- Silicone feet
- Screws and accessories
- Keyboard Case
- User Manual
Keycaps and switches are not included in the barebone kit unless otherwise specified.
For pre-built kits, the foam kit will be included separately in the accessory package instead of being pre-installed. Buyers can choose whether to install it according to their own preference.
Switches, stabilizers, and keycaps sold separately.
Designed for Comfort
Pixel67 was engineered with long-term typing comfort as a primary goal.
The front lip features a subtle slope that naturally follows the position of the hands and wrists, reducing the need for an additional wrist rest. Combined with a balanced 6-degree typing angle, the keyboard provides a comfortable typing posture suitable for extended daily use.
VIA & QMK Support
Pixel67 fully supports both VIA and QMK firmware.
Users can easily remap keys, create custom layers, program macros, and tailor the keyboard layout to fit their personal workflow. Whether for productivity, gaming, or specialized applications, Pixel67 offers extensive customization without requiring complicated software.
