Infinite 70 Overview
A Custom Keyboard Kit With Broad Finish and Plate Choice
The Gray Studio Infinite 70 is offered as a configurable custom keyboard kit with a wide range of anodized, electrophoresis and spray-coated color options. Rather than changing the core electronics, these finishes let buyers choose the visual direction of the chassis while keeping the listed 1.2 mm wired hot-swap PCB platform.
Plate choice is another major build decision. The current listing offers FR4, PC, aluminum and carbon-fiber plates, while the included foam and gasket package gives the builder several supplied components to work with during assembly.
Configuration Guide
The Main Choices That Shape an Infinite 70 Build
The current listing concentrates its configuration choices around exterior finish and plate material. The electronics package remains a wired 1.2 mm hot-swap PCB with no flex cuts, so buyers can focus on the finish and plate combination that best matches the intended build.
The product page describes a multi-layout hot-swap PCB, reducing the need to solder switches during normal assembly.
FR4, PC, aluminum and carbon fiber are listed as plate choices.
The current PCB specification states that VIAL is supported, with VIA-required files provided.
Color & Finish Selection
Anodized, Electrophoresis and Spray-Coated Options
The Infinite 70 listing organizes its colorways by finish process. This is useful when comparing variants because two colors can differ not only in hue but also in the surface treatment used to create the finish.

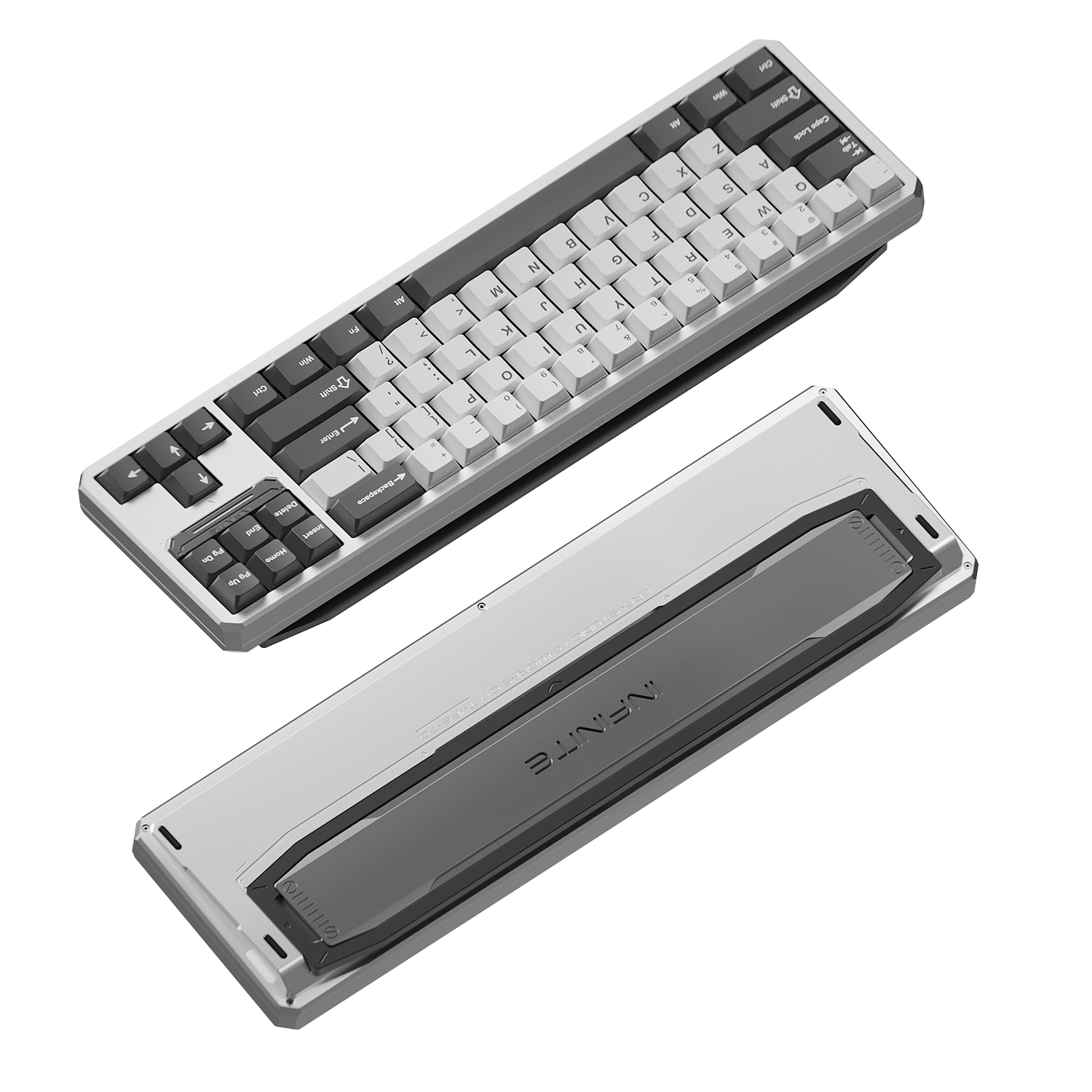

- Anodized: Quicksilver, Top Gun, Darth Vader, Peach Pink, Burgundy and Tyraels.
- Electrophoresis: Storm and Khaki.
- Spray-coated / powder-coated group: Concrete, Gravel, Tara, Skyline, Barley, Sunset Glow, Hibiscus, Rock Ash, Meteorite and Raspberry Pink.
Because color and finish are cosmetic choices rather than a substitute for checking the internal build specification, select the exterior first and then confirm the plate, PCB and included components for the final configuration.
PCB & Daughterboard
Wired Hot-Swap Electronics With VIAL Support
The product page lists a 1.2 mm wired, multi-layout hot-swap PCB with no flex cuts. It also specifies a split magnetic daughterboard, ESD protection and VIAL support. These details describe the keyboard's internal connectivity and configuration platform rather than the exterior finish.
- 1.2 mm wired PCB with no flex cuts.
- Multi-layout hot-swap design.
- Split magnetic daughterboard.
- ESD protection.
- VIAL support, with VIA-required files provided according to the listing.
Compatibility note: “magnetic daughterboard” in the product specification describes the daughterboard connection. The current page does not state that the keyboard is a Hall Effect or magnetic-switch keyboard, so do not treat that wording as HE-switch compatibility.
Plate, Foam & Gasket Package
Multiple Supplied Layers for Build Tuning
The kit includes a plate selected from FR4, PC, aluminum or carbon fiber, plus several foam layers and a 12-piece bridge-gasket set. These parts provide different assembly choices, but the final typing feel and sound still depend on the selected plate, switches, keycaps and how the kit is assembled.
- 3.5 mm Poron vibration-reduction plate foam.
- 0.5 mm ixPE PCB foam.
- 2 mm case foam for noise reduction.
- 0.1 mm electrostatics insulation foam.
- 12 bridge gaskets.
In the Box
The Kit Includes the Core Chassis, Electronics and Assembly Accessories
The current package list includes the complete case assembly, one selected plate, the hot-swap PCB with magnetic daughterboard, the supplied foam layers, bridge gaskets and small assembly accessories. A Graystudio screwdriver and tweezers are also listed.
- Case assembly with top case, badge, bottom case, weight frame, weight and back badge.
- One plate and one 1.2 mm PCB motherboard with magnetic daughterboard.
- Poron, ixPE, case and insulation foam layers.
- 12 bridge gaskets.
- Graystudio screwdriver, tweezers, extra screws, rubber feet and other listed accessories.
Before building: confirm the selected plate and verify all electronic parts before final assembly. The current product page specifically reminds buyers to test the PCB before soldering-related work.
Before You Order
Key Buying Checks for the Infinite 70
Confirm Before Checkout
- The exact colorway and finish process.
- The preferred plate material: FR4, PC, aluminum or carbon fiber.
- That the listed wired hot-swap PCB matches the planned build.
- Any switches, stabilizers and keycaps required beyond the listed kit contents.
Pre-Order Considerations
- The product page identifies the kit as a pre-order / group-buy item rather than standard in-stock inventory.
- Fulfillment status can change; the live timeline shown above should remain the source of truth.
- Free shipping is currently listed as not eligible for this product.
- Review the current purchase and cancellation terms before ordering.
Product Questions
Gray Studio Infinite 70 Keyboard Kit FAQ
Is the Infinite 70 hot-swappable?
Yes. The current product page lists a wired 1.2 mm multi-layout hot-swap PCB with no flex cuts.
What plate materials are available?
The listing currently offers FR4, PC, aluminum and carbon-fiber plate options.
Does the PCB support VIAL?
Yes. The product specification states that VIAL is supported and that VIA-required files are provided.
What does “split magnetic daughterboard” mean?
That wording appears in the PCB specification and refers to the daughterboard connection. The current listing does not describe the Infinite 70 as a Hall Effect keyboard or state magnetic-switch compatibility.
What foam is included?
The box list includes 3.5 mm Poron plate foam, 0.5 mm ixPE PCB foam, 2 mm case foam and 0.1 mm electrostatics insulation foam.
Does the kit include gaskets?
Yes. The current contents list includes one set of 12 bridge gaskets.
Are switches and keycaps included?
The current contents list does not list switches or keycaps. Plan those components separately unless the live product configuration explicitly adds them.
Is the Infinite 70 currently an in-stock product?
No. The product page identifies it as a pre-order / group-buy item. Because fulfillment status can change, use the live timeline above for the latest shipping information.
