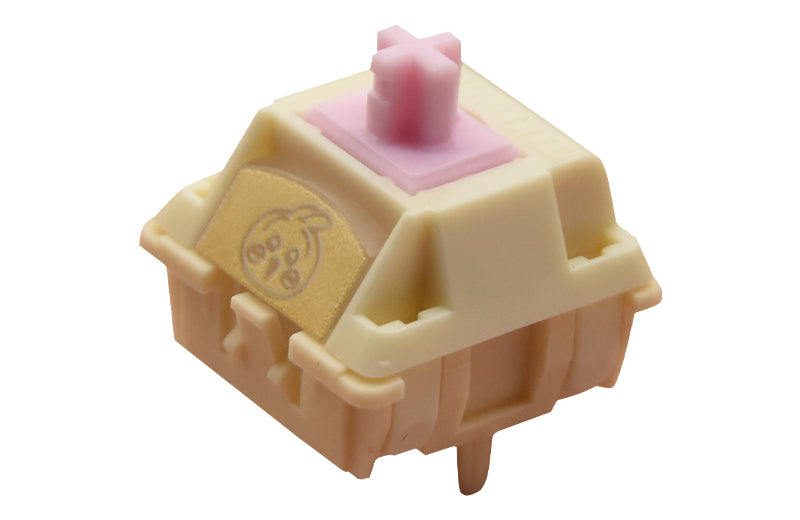

The Uchi V2 linear switch is a cute, thocky, and creamy linear switch design by Xida Studio and manufactured by Wingtree; The Uchi light diffuser is its distinguishing feature. It not only looks cute, but also helps RGB light to pass through for a better RGB effect.
They come with light spring weights for an easy and comfortable typing experience; Thanks to the 20mm spring, they feel very snappy and responsive at the same time.
Specs:
1 quantity = 10 switches
Switch Type
Linear
Designer
Xida
Mold
New
Manufacturer
Wingtree
Stem material
UPE
Top Housing
PC
Bottom Housing
PA66 + a small amount of fiberglass
Operating Force
28±2g/37±2g
Bottom-out Force
32±2g/43±2g
Pre-travel
1.8mm
Total Travel
3.6±0.2mm
Spring
20mm
Factory Lubed
Yes! Stem legs and stem sliders are covered with a very thin coat of 205g0. The spring and leaf are lubed with dry film. Everything else is dry. There is no lube in the bottom housing or anywhere near the stem pole. The chance that these get lube pooling issue is very small.
